Large Capacity Blood Bank Refrigerators

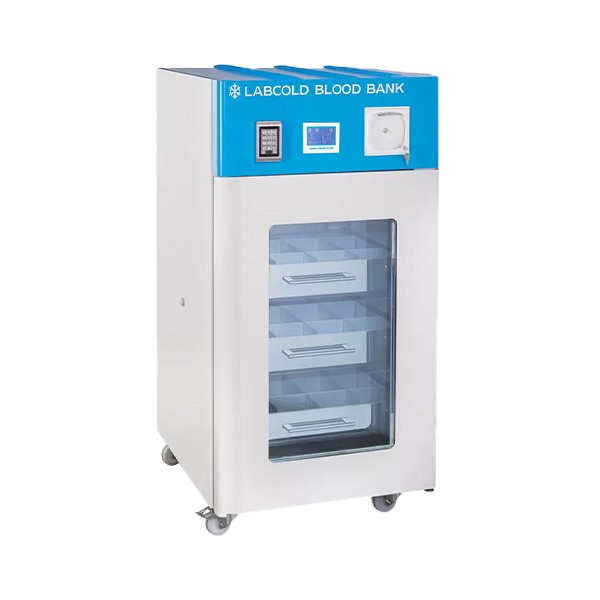

Glass Door RDBG2180MD

LABCOLD has supplied high quality blood bank refrigerators to public and private hospitals, clinics and UK military forces for over 40 years and is a supplier on the NHS Supply Chain Agreement for Pathology Fridges and Freezers .

LABCOLD’S UNIQUE ALARM AND CONTROL SYSTEM provides a constant check of all important performance parameters.

A touch panel display constantly shows both fridge chamber and liquid load simulator temperatures.

Clear symbol displays give unambiguous warnings of all alarm states and even advises when the self-recharging battery needs replacing.

A mutable, audible alarm is standard. Remote alarm contacts are provided to integrate with most switchboard alarms or other alarm devices.

DOORS and LOCKS: This Labcold Blood Bank refrigerator has a lockable outer door, using the Labcold Electronic Lock that latches every time the door is closed. The electronic lock allows only authorized personnel to access the contents by entering a 4-digit code. The lock has also been designed for the future and can be operated by compatible controlled issue programs via an interface connection.

This model has clear drawer fronts to minimize temperature changes during door openings and provide stable storage conditions.

GENERAL FEATURES: Smooth stainless steel interiors with exteriors finished in stain-resistant clinical white, which is easy to clean and maintain a smart appearance.

Interior lighting is provided to assist rapid and accurate selection of blood packs. Heavy-duty castors are fitted.

Refrigeration systems defrost automatically without temperature elevation outside of the storage temperature requirements.

Features
  • Registered medical device in line with UK MDR 2002 ; and compliant with BS4376: Part 1:1991
  • Dual Independent refrigeration
  • Stainless steel interior
  • Stainless steel drawers
  • Labcold Alarm and Control System
  • Labcold Keypad Electronic Lock
  • Dual temperature display with load simulator
  • Blood audit interface
  • Core temperature action alarm
  • Free calibration certificate from our UKAS accredited calibration laboratory #8898
Glass Door RDBG2180MD Specifications
Product Code
RDBG2180MD
Gross Capacity
345 litres
Style
Free standing
UK Warranty
2 years
External Dimensions (mm) HxWxD
1395 x 716 x 855
Internal Dimensions (mm) HxWxD
780 x 716 x 580
Temperature Range
2ºC to 6ºC
Net Weight
142kg
Capacity (250ml bags)
160 (approx)
Internal Material
Stainless Steel
External Material
Powder Coated Steel
Door Style
Glass
Lock Type
Digital Keypad
Drawers
3
Temperature Display
Yes
Door Open Alarm
Yes
Load Temperature Alarm
Yes
Air Temperature Alarm
Yes
Mains Failure Alarm
Yes
Load Temperature Display
Yes
Air Temperature Display
Yes
Access Porthole
Yes
Access Porthole Size
12mm
Shelves
N/A
Alarm Battery Backup
Yes
Auto Defrost
Yes
Remote Alarm Contacts
Yes
Internal Light
Yes
7 Day Chart Recorder
Yes
Free UKAS accredited temperature calibration Certificate
Included
Power Consumption Kwh/24hrs
4.7
Eco Friendly Refrigerant
Yes
Certified Medical Device - UK MDR 2002
Yes
Ambient Operating Temperature
16ºC to 32ºC
Other Free Standing Single Blood Bank Refrigerators
Model Lock Type
Solid Door RDBB2180MD Digital Keypad
Solid Door RSBB2270MD Digital Keypad
Glass Door RSBG2270MD Digital Keypad
Solid Door RDBB2320MD Digital Keypad
Glass Door RDBG2320MD Digital Keypad
